PC Engine 7374 RGB Mod Kit

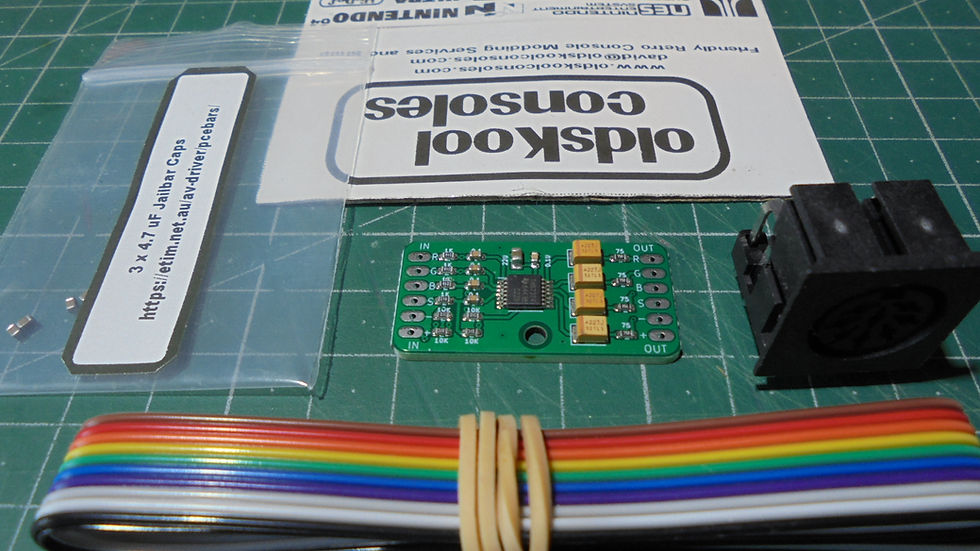

Includes DIN8 connector, modding wire, jailbar fix caps, retrogamingcables do pce scarts just for this mod, or I can include a megadrive din 8 for use with this scaler for hdmi setups, just add a note with the order.
- Latest 7374 based RGB Amplifier 75 ohm terminated sync. Compatible with Core / Core II / Turbo Grafx / Duo / Duo-R / Duo-RX / Super Grafx. Includes DIN8 PCB mount connector (DIN8 or mini DIN8 panel mount connector available on request) Includes replacement caps for Jailbar fix
I plug these in to check they work before dispatching. This board is correctly attenuated for consumer displays. Voltage levels have been checked with an osscilloscope. (see final image showing sync and blue colour signal voltage levels) . Target should be around 660mV for the RGB lines, and sync should be between 250mV and 900mV for SCART
Mod board Installation instructions:
1. Replace DIN Connector

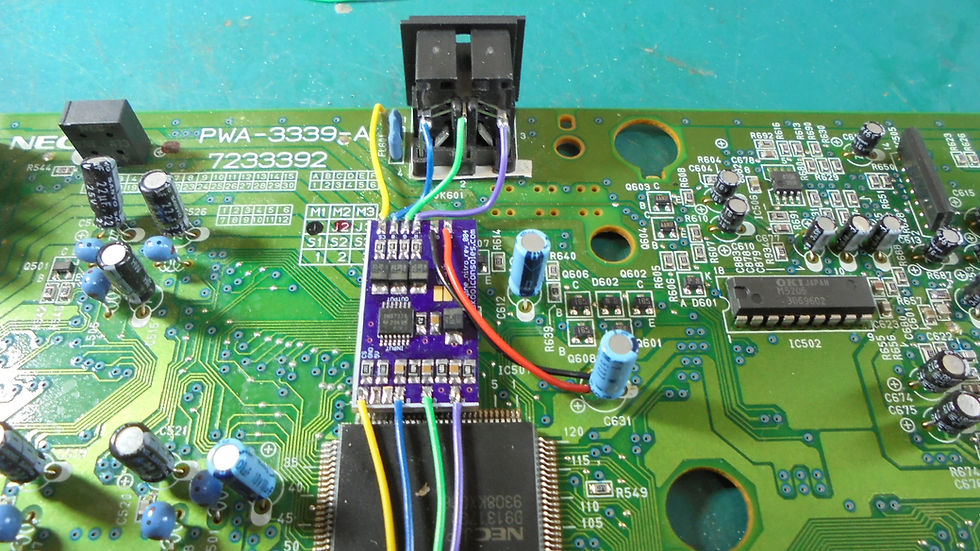

2. Solder sync and G,R,B wires to Pins 44, 47, 49, 51 on 6260 chip
Lay a piece of of flexistrip on top of chip to keep wires in place.
5v and GND can also be tapped directly and even the 4.7u jailbar caps can be soldered between digital and analogue 5v/gnd pins.
3. Solder to mod board inputs, then solder GRB mod outputs to top 3 pins of DIN8 (as in pictured)
4. Sync goes to underside of DIN8 with trace cut as seen,
5 Solder 5v and gnd to mod board, use your multimeter continiuty setting to find nearest 5v and GND points for the mod board.
---
Retro gaming cables stock DIN 8 compatible scarts for duo, duo-r, turbo grafx here, you don't need the sync seperator option
If you want to use an easier method and add a separate mini din8 panel mount connector you can use this cable, I'll include this connector anyway
Any queries, just contact david@oldskoolconsoles.com
